华为电信光猫HS8145V GPON/EPON互改，并改菊花公版界面

上个月电信公网掉了，转网去了联通。安装的一个下行1000M上行300M，跑不满宽带。一直以为是联通的个创维垃圾猫问题，刚好家里有一个闲置的垃圾华为HS8145V电信光猫，这个猫比创维猫还是强点的。现把更换光猫的教程整理出来。

准备工作：

先按《破解电信华为光猫HS8145V超级密码(图文教程)》拿到电信猫的超密信息开telnet。再把联通创维猫里的loid注册号备份出来，输入http://192.168.1.1/hidden_version_switch.html复制关键信息MAC，标识码等信息。

教程开始：

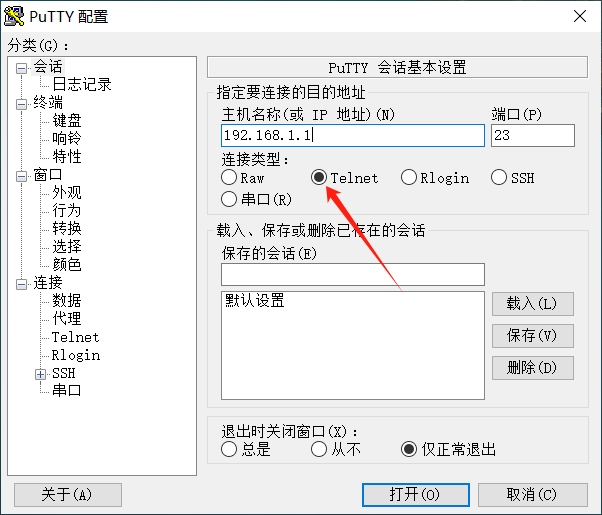

1、先用putty登录光猫telnet，账号root，密码adminHW.

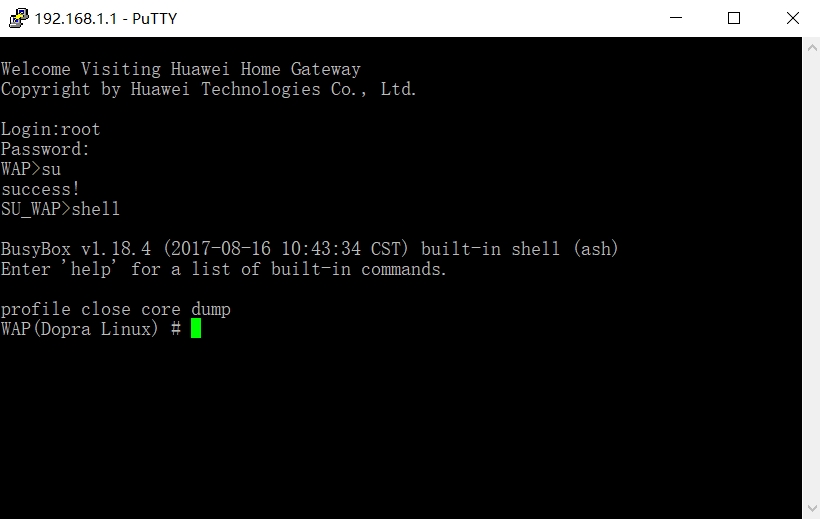

2、命令su提权，shell命令切换，如下图：

3、命令：cd /mnt/jffs2/ 切换到目录。如下图：

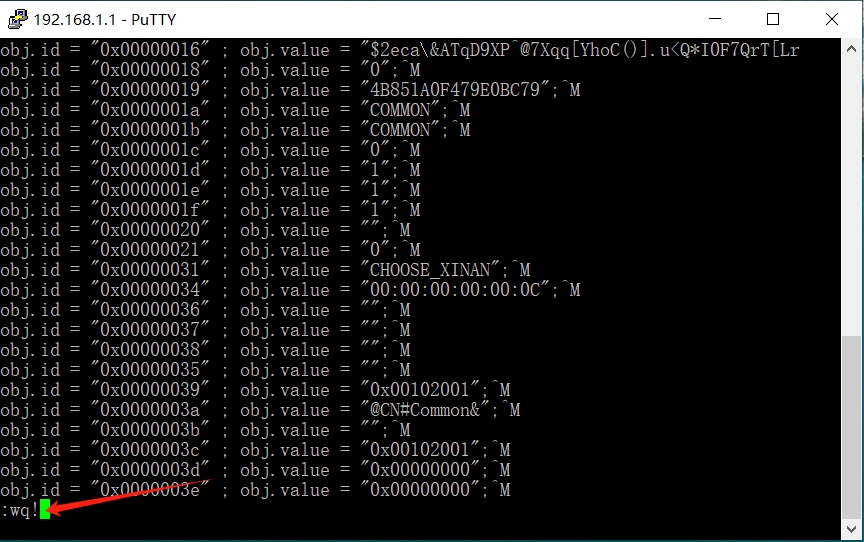

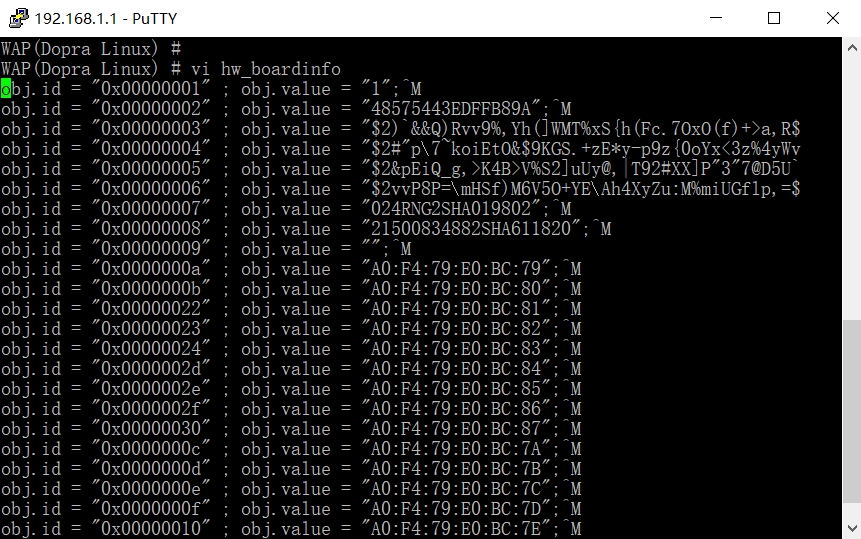

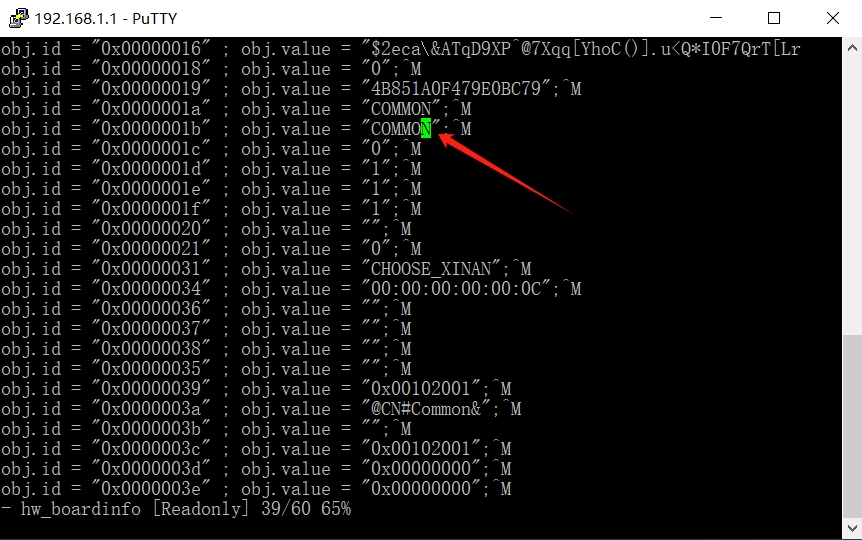

4、输入命令：vi hw_boardinfo修改，修改完成后按esc键，输入冒号+wq！保存退出。如下图：

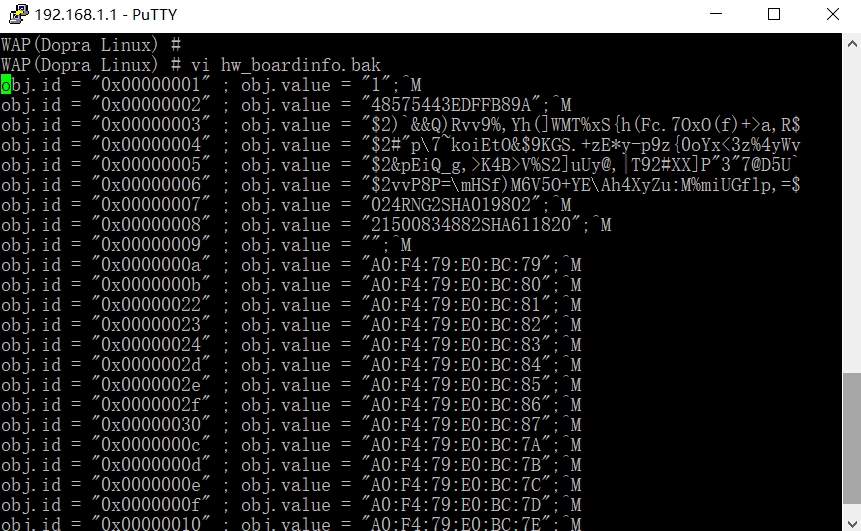

5、同样的方法修改hw_boardinfo.bak文件，跟上面一个文件内容完全一样。如下图。

6、修改后reboot命令重启光猫。浏览器输入192.168.1.1进入光猫。输入联通光猫获取的LOID注册即可使用。

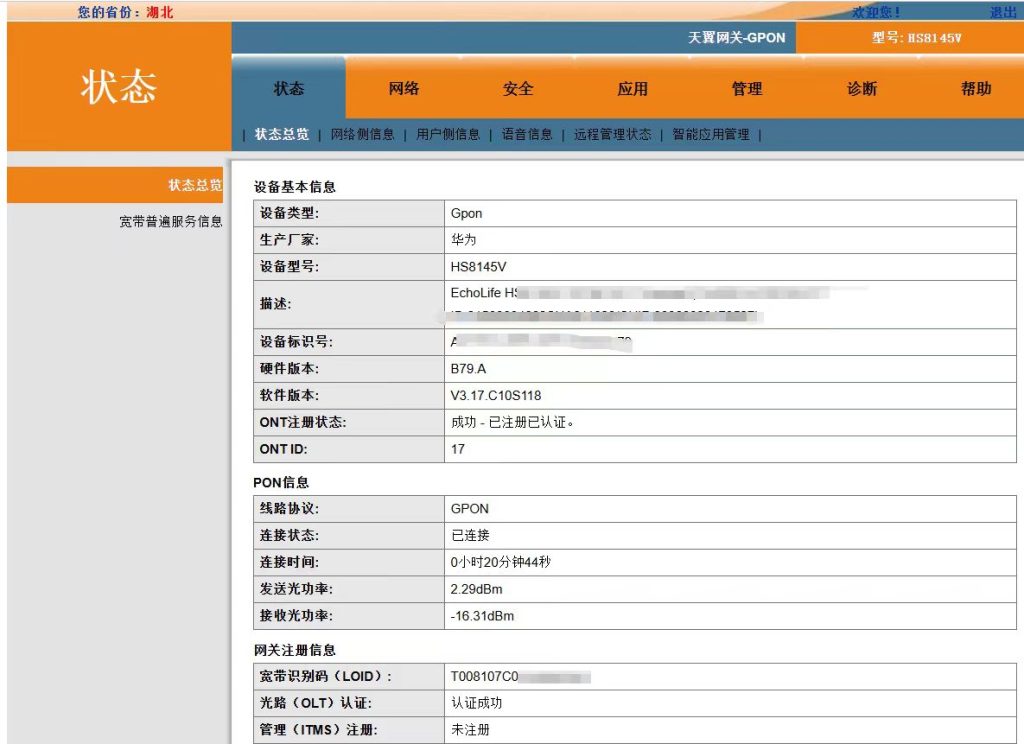

这是原来电信光猫界面

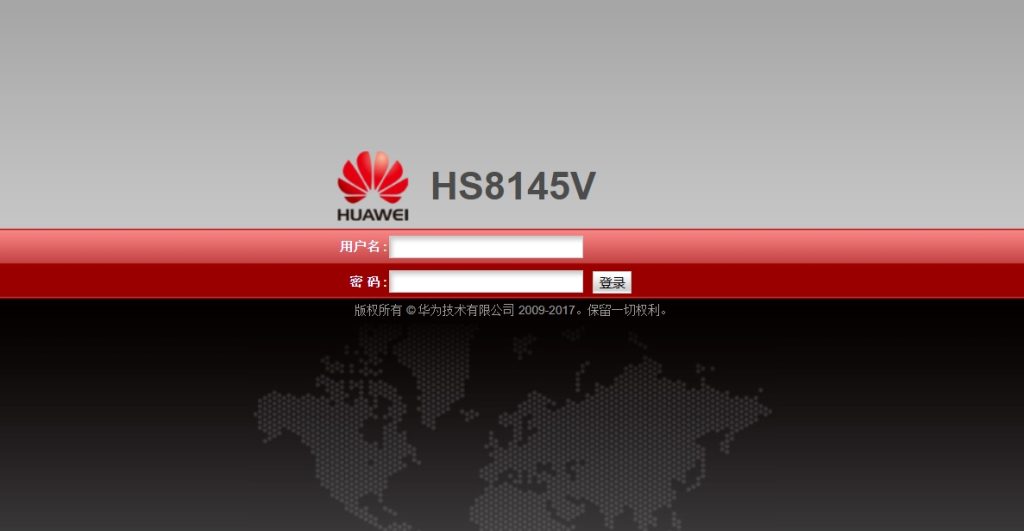

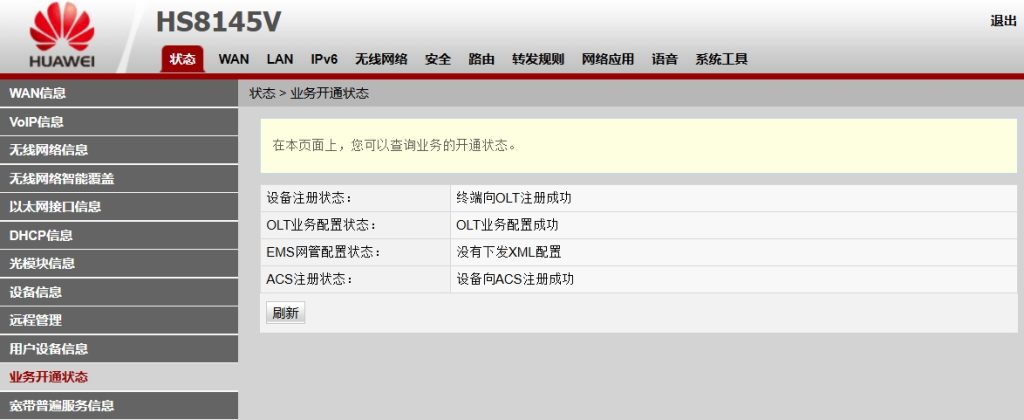

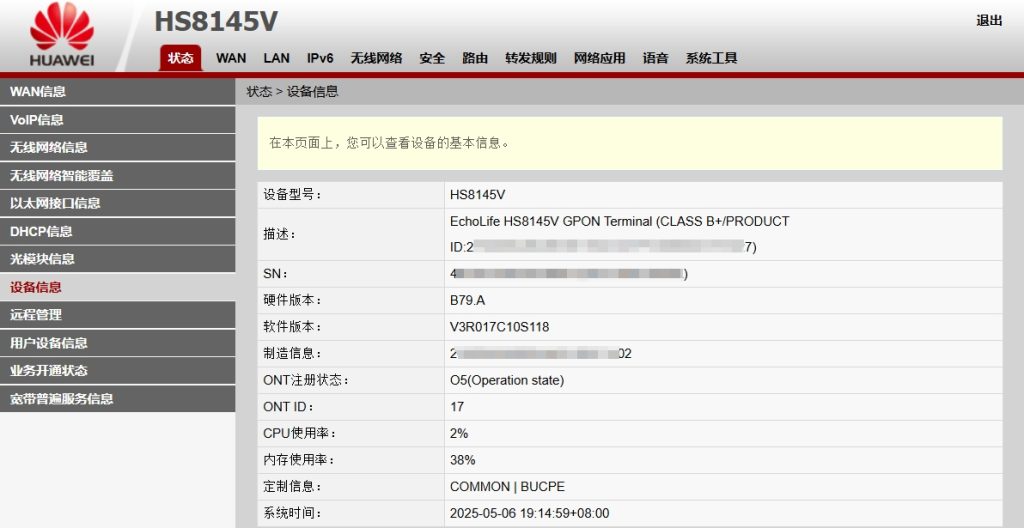

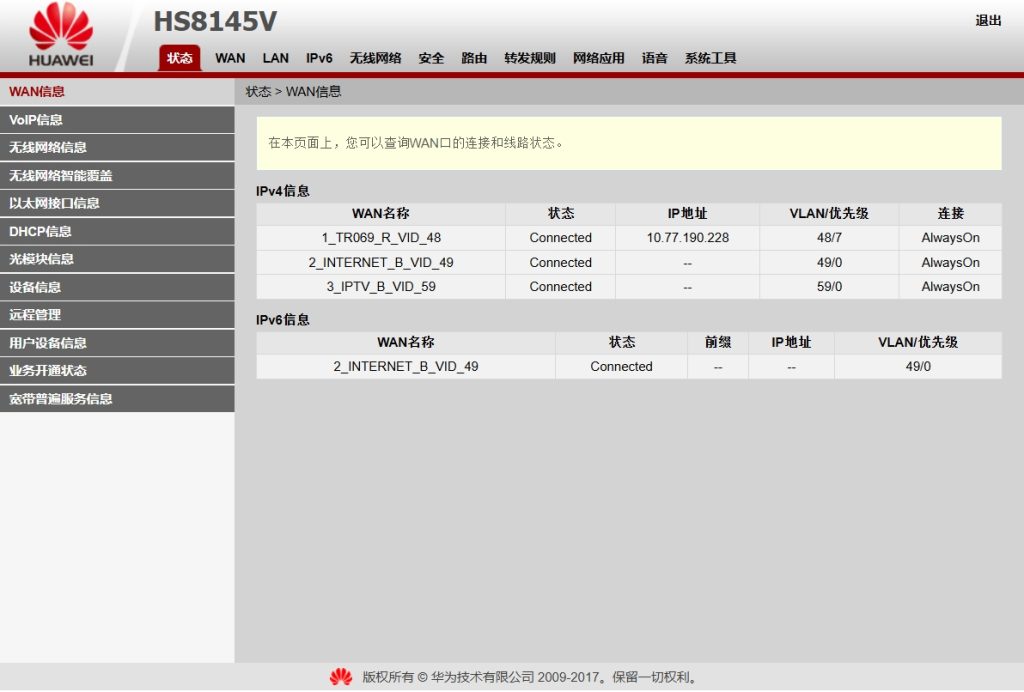

就是修改后的界面：

如果需要epon和gpon之间互相切换，直接修改信息即可，如下：

最后附上hw_boardinfo文件信息对照表：

obj.id = "0x00000001" ; obj.value = "2";                         2为EPON   1为GPON  4为双模
obj.id = "0x00000002" ; obj.value = "48575443000A4C0A";          标签上的 PON NO
obj.id = "0x00000003" ; obj.value = "$2VkbZLTl@`A0`,"3Jr=JQT/>]7@G)~A+y5:&'Br'=$";          这些乱码部分不要动为电信下发的相关密码
obj.id = "0x00000004" ; obj.value = "$2WW8PP]|._,<h_=5e3I,-9[zl=pi,V&Z%tfB5Y]G3P$>V0390K9^6]e@zw&1Y$";
obj.id = "0x00000005" ; obj.value = "$2`~5/9p}dYF@l;u$.m4lJ~C{JPG-KF*186xBogs@P{tSaC$z#/F9=4{Gq8~j5m|GUDOEw]:C$1$GE~,.K$";
obj.id = "0x00000006" ; obj.value = "$2cXCqRQVG14)D)kLX5n^K3K\".Z6$z7~u12-z:7q9$";
obj.id = "0x00000007" ; obj.value = "024BTK2SH7000415";          此处可以不修改要修改也可以根据(S)SN后的数字来修改，但只取最后几位，注意位数
obj.id = "0x00000008" ; obj.value = "21500834102SH7601000";      标签上的 PROD ID
obj.id = "0x0000000a" ; obj.value = "A4:C6:88:88:52:AE";         下面这些MAC地址可以根据标签上的改（注意是十六进制的）
obj.id = "0x0000000b" ; obj.value = "A4:C6:88:88:52:B4";
obj.id = "0x00000022" ; obj.value = "A4:C6:88:88:52:B5";
obj.id = "0x00000023" ; obj.value = "A4:C6:88:88:52:B6";
obj.id = "0x00000024" ; obj.value = "A4:C6:88:88:52:B7";
obj.id = "0x0000002d" ; obj.value = "A4:C6:88:88:52:B8";
obj.id = "0x0000002e" ; obj.value = "A4:C6:88:88:52:B9";
obj.id = "0x0000002f" ; obj.value = "A4:C6:88:88:52:BA";
obj.id = "0x00000030" ; obj.value = "A4:C6:88:88:52:BB";
obj.id = "0x0000000c" ; obj.value = "A4:C6:88:88:52:AF";         跟下面的MAC地址对应
obj.id = "0x0000000d" ; obj.value = "A4:C6:88:88:52:B0";
obj.id = "0x0000000e" ; obj.value = "A4:C6:88:88:52:B1";
obj.id = "0x0000000f" ; obj.value = "A4:C6:88:88:52:B2";
obj.id = "0x00000010" ; obj.value = "A4:C6:88:88:52:B3";
obj.id = "0x00000011" ; obj.value = "A4:C6:88:88:52:BC";
obj.id = "0x00000012" ; obj.value = "A4:C6:88:88:52:BD";
obj.id = "0x00000013" ; obj.value = "A4:C6:88:88:52:BE";
obj.id = "0x00000025" ; obj.value = "A4:C6:88:88:52:AE";
obj.id = "0x00000016" ; obj.value = "$2@XTi$m$^-7H3!yTyv/T;<@kAK&sX8B(\"mGIS0Q3]h3a4JL;+GUl@";z"PQS$";
obj.id = "0x00000018" ; obj.value = "0";                       电信移动为 0，联通为 2
obj.id = "0x00000019" ; obj.value = "3D811A4C6888852AE";       设备标识 - 后面的  不要最后一位（取中间那段，注意位数）
obj.id = "0x0000001a" ; obj.value = "E8C";                     中国电信为E8C ，移动为 CMCC，联通为 COMMON ，华为为COMMON
obj.id = "0x0000001b" ; obj.value = "HUBCT";                   湖北电信HUBCT ，移动为 BJCMCC_RMS，联通为 SHCU   ,华为为COMMON
obj.id = "0x0000001c" ; obj.value = "0";
obj.id = "0x0000001d" ; obj.value = "1";
obj.id = "0x0000001e" ; obj.value = "1";
obj.id = "0x0000001f" ; obj.value = "1";
obj.id = "0x00000020" ; obj.value = "";
obj.id = "0x00000021" ; obj.value = "0";
obj.id = "0x00000031" ; obj.value = "CHOOSE_XINAN";            电信为CHOOSE_XINAN，移动为CHOOSE_CMCC_RMS2，联通为CHOOSE_UNICOM ,  华为为CHOOSE_XINAN，跟customize.txt里的对应
obj.id = "0x00000034" ; obj.value = "00:00:00:00:00:0C";
obj.id = "0x00000035" ; obj.value = "";                        移动为 SMART ，电信、联通，华为为空
obj.id = "0x00000039" ; obj.value = "0x00102001";
obj.id = "0x0000003a" ; obj.value = "";
obj.id = "0x0000003c" ; obj.value = "0x00102001";
obj.id = "0x0000003d" ; obj.value = "0x00000000";
obj.id = "0x0000003e" ; obj.value = "0x00000000";
obj.id = "0x0000003f" ; obj.value = "0x00000000";
obj.id = "0x00000040" ; obj.value = "";
obj.id = "0x00000041" ; obj.value = "";
obj.id = "0x00000042" ; obj.value = "0";
obj.id = "0x00000043" ; obj.value = "";
obj.id = "0x0000000c" ; obj.value = "A4:C6:88:88:52:AF";       跟上面的MAC地址对应
obj.id = "0x00000044" ; obj.value = "";
obj.id = "0x00000045" ; obj.value = "";
obj.id = "0x00000046" ; obj.value = "0";
obj.id = "0x00000047" ; obj.value = "0";
obj.id = "0x00000050" ; obj.value = "";
obj.id = "0x00000051" ; obj.value = "";
obj.id = "0x00000052" ; obj.value = "";

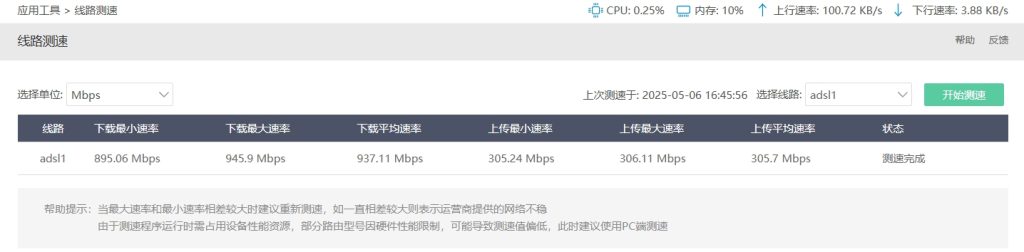

来个换猫后测速图：
